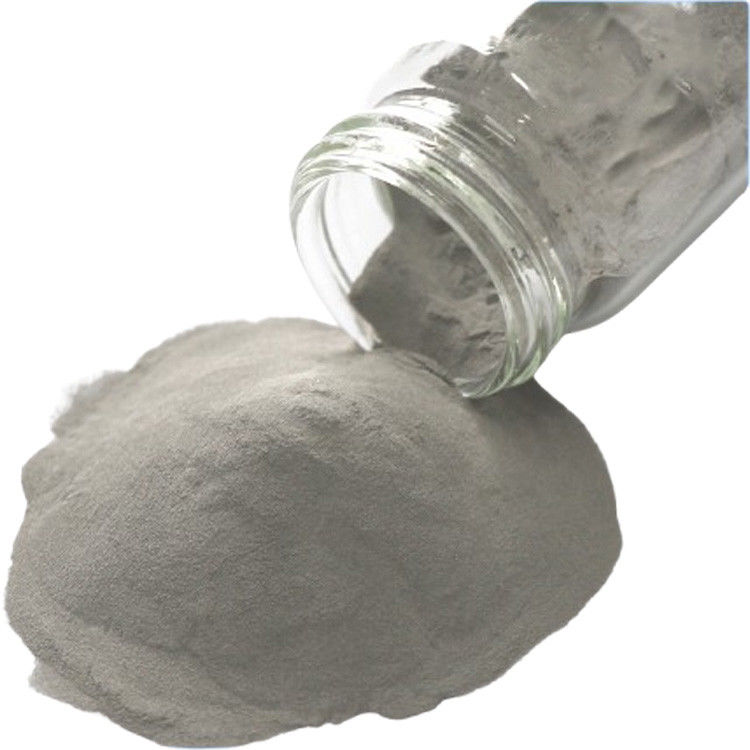

TC11 Titanium Alloy Powder 15-53um 53-150um Laser Cladding Powder 3D Printing

Product Details

Place of Origin: Deyang, China

Brand Name: Porous

Certification: ISO9001/Product Quality Certificate

Model Number: TC11

Payment & Shipping Terms

Minimum Order Quantity: 5KG

Price: Negotiable

Delivery Time: 3-5 working days

Payment Terms: T/T

Get Best Price
Product Details
Highlight:

TC11 Titanium Alloy Powder

,

53um Laser Cladding Powder

,

150um Laser Cladding Powder

Product Name:
TC11 Powder
Tap Density:
2.6
Tensile Strength:
1020+50MPa
Hall Flow Rate:
35s/50g
Bulk Density:
2.5g/cm³
Oxygen Content:
≤1200ppm
Product Name:
TC11 Powder
Tap Density:
2.6
Tensile Strength:
1020+50MPa
Hall Flow Rate:
35s/50g
Bulk Density:
2.5g/cm³
Oxygen Content:
≤1200ppm
Product Description



TC11 Titanium Alloy Powder 15-53um 53-150um Laser Cladding Powder 3D Printing Powder

Product packaging:

Sample packing: 1kg or 5kg vacuum packing
Iron drum packing; Generally 50 kg/barrel or 200 kg/barrel.
The iron drum was protected by argon gas.
If customers have special requirements, can also be packaged according to customer requirements.

Application

TC11 alloy is a type of α - β - type thermal strength titanium alloy with excellent comprehensive performance. It has excellent thermal strength properties (high temperature strength, creep resistance, etc.) below 500 ℃ and high room temperature strength. It is mainly used to manufacture compressor discs, blades, drums and other parts of aircraft engines, and can also be used to manufacture aircraft structural components.
Powder can be used in processes such as Selective Laser Melting (SLM), Electron Beam Melting (EBM), Direct Laser Deposition (DLD), Powder Metallurgy (PM), Injection Molding (MIM), Laser Cladding, etc.


TC11 Titanium Alloy Powder 15-53um 53-150um Laser Cladding Powder 3D Printing 0


Product specifications



Typical Product TC11
Specifications 0-25 15-45 15-53 53-150 15-53 75-250
Particle Size
Distribution/μm
D10 7-12 12-17 18-23 62-67 20-30 80-95
D50 10-15 27-32 32-37 82-87 35-40 170-190
D90 18-23 45-50 55-60 130-140 50-55 225-245
Sphericity ≥94% ≥93% ≥93% ≥93% ≥95% ≥95%
Flowability/(s/50g)     ≤40 ≤35 ≤30 ≤25
Apparent Densityi(g/c㎡)     2.3-2.5 2.3-2.5 2.5-2.7 2.5-2.7
Tap Densityll(g/c㎡) 2.70-2.90 2.80-2.90 2.70-2.90 2.70-2.90 2.70-2.90 2.70-2.90
Oxygen Content(ppm) <1300ppm (600-1600ppm Available)
ChemicalComponen Al:5.80-7.0;Si:0.20-0.35;Mo:2.80-3.80;Zr:0.20-0.35,Ti Bal.
Technology Standard GB/T 3620-2007


Product Quality Report

TC11 Titanium Alloy Powder 15-53um 53-150um Laser Cladding Powder 3D Printing 1


TC11 Titanium Alloy Powder 15-53um 53-150um Laser Cladding Powder 3D Printing 2
