Highlight:
Low Oxygen Titanium Alloy Powder
, Additive Manufacturing Titanium Alloy Powder
, Grade 5 Titanium Alloy Powder
TA6V/Grade 5 Low Oxygen Titanium Alloy Powder For Additive Manufacturing
Product packaging:
Sample packing: 1kg or 5kg vacuum packing
Iron drum packing; Generally 50 kg/barrel or 200 kg/barrel.
The iron drum was protected by argon gas.
If customers have special requirements, can also be packaged according to customer requirements.
Characteristic
Size: 15-53um, customized
Purity: Custom

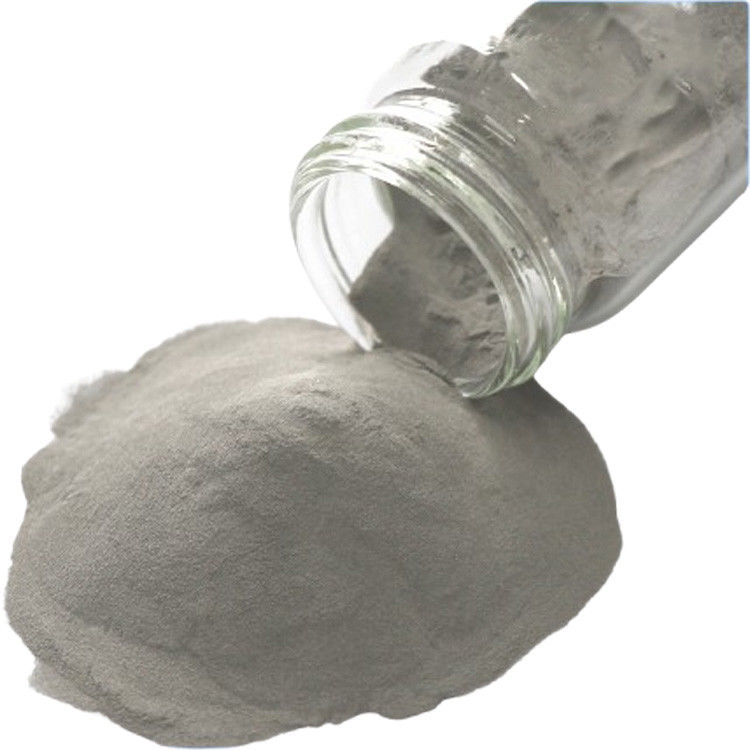

Product morphology: grey spherical powder;
Product features: high purity, complete specifications, controllable particle size, easy sintering, good formability, stable quality; Granularity range: specific according to customer requirements for production;
Product introduction:
TC4 is a 6Al-4V titanium alloy, where 6 represents the percentage of aluminum content in the titanium alloy and V represents the percentage of vanadium content. This titanium alloy material is one of the most widely used titanium alloy material, mainly used in aerospace, medical instruments, ships, automobiles and other fields.
Product specifications
| Typical Product |
Grade 5(Ti-6Al-4V) |
| Specifications |
0-25 |
0-45 |
15-53 |
53-150 |
15-53 |
53-150 |
Particle Sizo
Distrnibution/μm |
D10 |
7-12 |
12-17 |
18-23 |
62-67 |
20-30 |
55-65 |
| D50 |
10-15 |
27-32 |
32-37 |
82-87 |
35-40 |
95-110 |
| D90 |
18-23 |
45-50 |
55-60 |
130-140 |
50-55 |
140-155 |
| Sphericity |
≥94% |
≥93% |
≥93% |
≥93% |
≥95% |
≥95% |
| Flowability/(s/50g) |
|
|
≤40 |
≤35 |
≤30 |
≤25 |
| Apparent Densityi(g/c㎡) |
|
|
2.3-2.5 |
2.3-2.5 |
2.5-2.7 |
2.5-2.7 |
| Tap Densityll(g/c㎡) |
2.70-2.90 |
2.80-2.90 |
2.70-2.90 |
|
|
|
| Oxygen Content/(ppm) |
<1000ppm (600-1600ppm Available) |
| Yield strength |
1080-1130 Mpa |
| Elongation rate |
16-20% |
| Tensile strength |
1120-1200 Mpa |
| ChemicalComponent |
Al:5.5~6.75;V:3.5~4.5;Fe≤0.3;C≤0.08;N≤0.05;H≤0.015;Ti:Bal |
| Technology Standard |
GB/T3620-2007,ASTM B348-13,Grade 5 |
Product Quality Report
Company Profile
Sichuan Porous Technology Co., Ltd. is a specialized company that specializes in the research and development, production, and sales of metal porous materials such as titanium and titanium alloy powder, titanium powder felt (TPF), and nickel powder felt (NPF). The company is located in Zhongjiang Intelligent Manufacturing Industrial Park, Deyang City, Sichuan Province, covering an area of approximately 5000 square meters. The core technical team of the company comes from Central South University, with a first-class R&D technology team and excellent management team. After years of research and development, a series of core patented technologies have been formed in the production of metal powder, hydrogen film, and hydrogen felt. The company adheres to the principle of "meeting customer needs and exceeding customer expectations", constantly making progress and continuous improvement. It is a high-tech enterprise specializing in the research and development of metal powder, hydrogen film, and hydrogen felt production. The company's main products include HDH titanium powder, titanium alloy powder products, and porous metal products. The annual production capacity of titanium powder and titanium alloy powder produced by the company is more than 200 tons. The company's products have been widely used in fields such as powder metallurgy, titanium filter tubes, 3D printing, MIM injection molding, etc.: titanium based flexible gradient gas diffusion powder felt - (titanium powder felt TPF), nickel based flexible gradient gas diffusion powder felt - (nickel powder felt NPF) with an annual production capacity of 100000 square meters, widely used in hydrogen energy new energy production fields such as green hydrogen (PEM, AEM) equipment and composite electrodes.
