Low Oxygen Ti 6Al 4V Powder MIM Metal Powder For 3D Printing

Name: Low Oxygen Ti 6Al 4V Powder MIM Metal Powder For 3D Printing
Brand: Sichuan Porous Metal Technology Co., Ltd.
SKU: Ti-6Al-4V
Availability: InStock

Product Details

Place of Origin: Deyang, China

Brand Name: Porous

Certification: ISO9001/Product Quality Certificate

Model Number: Ti-6Al-4V

Payment & Shipping Terms

Minimum Order Quantity: 5KG

Price: Negotiable

Delivery Time: 3-5 working days

Payment Terms: T/T

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                Ti 6Al 4V MIM Metal Powder, Ti6Al4V Metal Powder For 3D Printing, Low Oxygen Ti 6Al 4V Powder


Product Name:	Low Oxygen 3D Printing Of Spherical Titanium Alloy Ti 6Al 4V Powder For MIM/3D Printing	Titanium Content:	Bal.
Powder Shape:	Spherical	Production Process:	EIGA
Oxygen Content:	≤1000ppm	Tensile Strength:	1120-1000 Mpa
Package:	Vacuum Bottle

Product Name:	Low Oxygen 3D Printing Of Spherical Titanium Alloy Ti 6Al 4V Powder For MIM/3D Printing
Titanium Content:	Bal.
Powder Shape:	Spherical
Production Process:	EIGA
Oxygen Content:	≤1000ppm
Tensile Strength:	1120-1000 Mpa
Package:	Vacuum Bottle

Product Description

Low oxygen 3D printing of spherical titanium alloy Ti 6Al 4V powder for MIM/3D printing

The company uses electrode induction melting atomization (EIGA) powder production methods to produce spherical powders of titanium alloys such as TC4 (Ti-6A1-4V), TA15, TC11, TC18, TINI, TIAL, and titanium based composite materials. These powders have the characteristics of low impurity content, good fluidity, high batch stability, and excellent matching, and can be matched with various powder equipment on the market.

Particle size: 15-53um, 15-45um, 53-150um customized

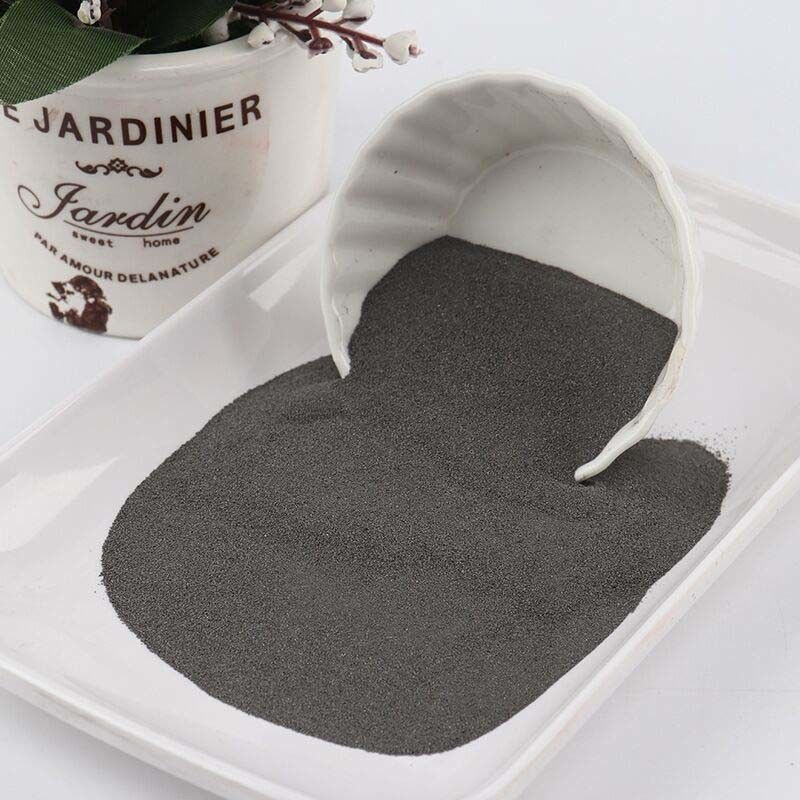

Product Appearance: Grey spherical powder;
Product features: high purity, complete specifications, controllable particle size, easy sintering, good formability, stable quality Particle size range: Specific production can be carried out according to customer requirements;

Low Oxygen Ti 6Al 4V Powder MIM Metal Powder For 3D Printing 0

Product specifications

典型产品 Typical Product		TC4(Ti-6Al-4V)
规格 Specifications		0-25	0-45	15-53	53-150	15-53	53-150
粒度分布/μm Particle Sizo Distrnibution/μm	D10	7-12	12-17	18-23	62-67	20-30	55-65
	D50	10-15	27-32	32-37	82-87	35-40	95-110
	D90	18-23	45-50	55-60	130-140	50-55	140-155
球形度 Sphericity		≥94%	≥93%	≥93%	≥93%	≥95%	≥95%
霍尔流速/(s/50g) Flowability/(s/50g)				≤40	≤35	≤30	≤25
延伸率 Elongation rate		1080-1130Mpa
屈服强度 Yielding strength		16-20%
氧含量/(ppm) Oxygen Content/(ppm)		<1000ppm (600-1600ppm Available)
制备工艺 Peparation Methog		EIGA
化学成分(wt.%) ChemicalComponent		Al:5.5~6.75;V:3.5~4.5;Fe≤0.3;C≤0.08;N≤0.05;H≤0.015;Ti:Bal
技术标准 Technology Standard		AMS4998,AMS4930,AMS4928,ASTM B348,ASTM F136 ASTM F2924,ASTM F3001,GBT 3620,GBT13810,Gr.5,Gr.23

Product Quality Report
