Irregular Titanium Alloy Powder Digital 3C HDH Titanium 3D Printing Powder 15um-45um

Name: Irregular Titanium Alloy Powder Digital 3C HDH Titanium 3D Printing Powder 15um-45um
Brand: Sichuan Porous Metal Technology Co., Ltd.
SKU: HDH irregular titanium alloy powder
Availability: InStock

Product Details

Place of Origin: Deyang, China

Brand Name: Porous

Certification: ISO9001/Product Quality Certificate

Model Number: HDH irregular titanium alloy powder

Payment & Shipping Terms

Minimum Order Quantity: 5KG

Price: Negotiable

Delivery Time: 3-5 working days

Payment Terms: T/T

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                Irregular Titanium Alloy Powder, Digital 3C HDH Powder, 15um Titanium 3D Printing Powder


Product Name:	HDH Irregular Titanium Alloy Powder	Material:	Titanium
Oxygen Content:	＜0.2 Ppm	Shape:	Irregular
Production Process:	HDH	Application Area:	Digital 3C, 3D Printing, MIM

Product Name:	HDH Irregular Titanium Alloy Powder
Material:	Titanium
Oxygen Content:	＜0.2 Ppm
Shape:	Irregular
Production Process:	HDH
Application Area:	Digital 3C, 3D Printing, MIM

Product Description

HDH irregular titanium alloy powder

Our Titanium titanium powder is produced using a proprietary hydrogenation/dehydrogenation (HDH) process, offering a variety of particle size distribution options. This production process is both sustainable and scalable, making it a cost-effective alternative to other titanium powder production technologies.

Particle size: 15-53um, 0-25um, 15-45um, 53-150um, customized

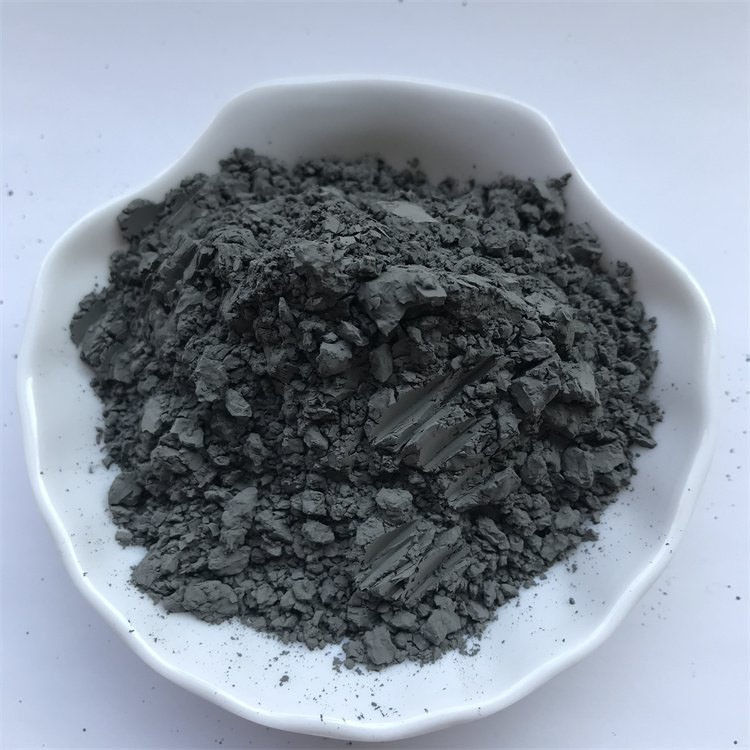

Product appearance: gray powder;
Product features: 1. Low oxygen content, low price, certain fluidity, can replace traditional spherical shapes
2. The powder has high purity, and the particle size and residual chemical indicators are strictly controlled.
3. The Ti-6A1-4V powder produced using HDH has particles without pores.
Application areas: Our hydrogenated dehydrogenation TC4 powder is widely used in additive manufacturing, medical equipment, 3C, metal injection molding, powder metallurgy, sputtering targets, industrial applications, and 3D printing

Irregular Titanium Alloy Powder Digital 3C HDH Titanium 3D Printing Powder 15um-45um 0

Characteristic

1. Strictly control high purity, particle size, and residual chemical indicators.
2. The titanium alloy powder prepared using HDH has non porous particles.
3. These powders meet the chemical requirements of medical ASTM F1580.

Specification parameters

典型产品 Typical Product		TA15
规格 Specifications		0-25	15-45	15-53	53-150	15-53	75-250
粒度范围/μm Particle Size Distribution/μm	D10	7-12	12-17	18-23	62-67	20-30	80-95

	D50	10-15	27-32	32-37	82-87	35-40	170-190
	D90	18-23	45-50	55-60	130-140	50-55	225-245
球形度 Sphericity		≥94%	≥93%	≥93%	≥93%	≥95%	≥95%
霍尔流速/(s/50g) Flowability/(s/50g)				≤40	≤35	≤30	≤25
松装密度/(g/cm²) Apparent Densityi(g/c㎡)				2.3-2.5	2.3-2.5	2.5-2.7	2.5-2.7
振实密度/(g/cm³) Tap Densityll(g/cm¹)		2.70-2.90	2.80-2.90	2.70-2.90	2.70-2.90	2.70-2.90	2.70-2.90
氧含量/(ppm) Oxygen Content(ppm)		<1000ppm (600-1600ppm Available)
制备工艺 PreparationMethod		EIGA				PREP
化学成分(wt.%) ChemicalComponen		Al:5.5-7.1;V:0.8-2.5;Mo:0.5-2;Zr:1.5-2.5

技术标准 Technology Standard		ASTM B348,GBT3620,GBT 13810
