Home > products > Spherical Titanium Powder > Metallurgy Plasma Spraying Spherical Titanium Powder 50um-150um

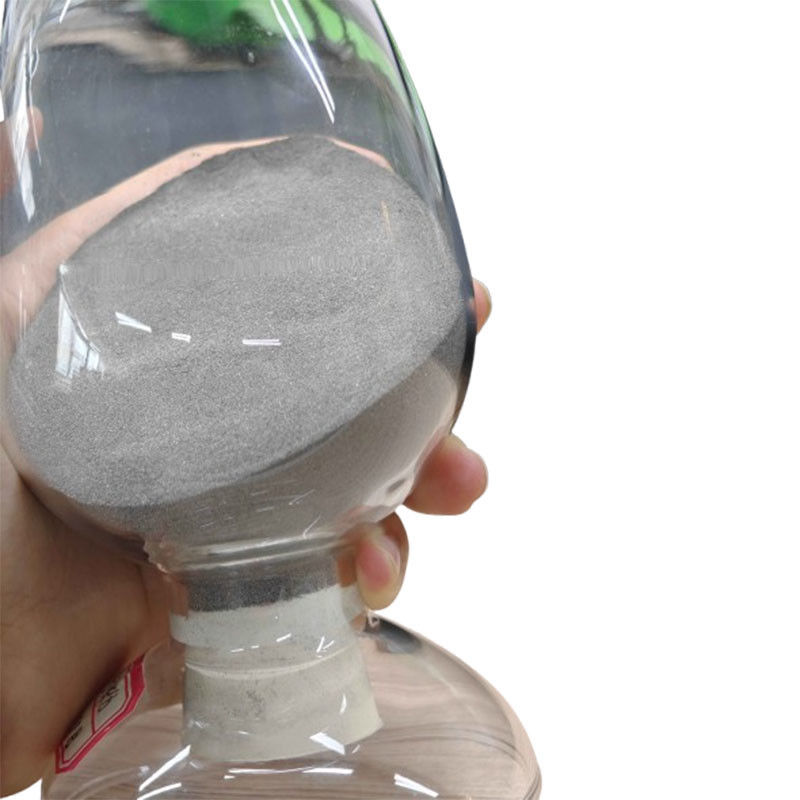

Metallurgy Plasma Spraying Spherical Titanium Powder 50um-150um

Product Details

Place of Origin: Deyang, China

Brand Name: Porous

Certification: ISO9001/Product Quality Certificate

Model Number: Spherical titanium powder

Payment & Shipping Terms

Minimum Order Quantity: 5kg

Price: Negotiable

Delivery Time: 3-5 working days

Payment Terms: T/T

Get Best Price
Product Details
Highlight:

Plasma Spraying Spherical Titanium Powder

,

Metallurgy Spherical Titanium Powder

,

50um Spherical Titanium Powder

Product Name:
Spherical T Powder
Purity:
99.5%
Production Process:
Aerosolization
Oxygen Content:
<0.12ppm
Tap Densityll:
≥2.1 G/c㎡
Size:
15-53um
Product Name:
Spherical T Powder
Purity:
99.5%
Production Process:
Aerosolization
Oxygen Content:
<0.12ppm
Tap Densityll:
≥2.1 G/c㎡
Size:
15-53um
Product Description

Application Of Spherical Titanium Powder In Plasma Spraying Powder Metallurgy


Particle size: ultrafine spherical titanium powder, 15-53 μ m, 15-45 μ m, 50-150 μ m, customizable
Purity: 99.7% -99.9%, customizable
Product form: Dark gray amorphous powder;
Product features: high purity, complete specifications, controllable particle size, stable quality; Granularity range: specific production according to customer requirements

Metallurgy Plasma Spraying Spherical Titanium Powder 50um-150um 0

Product specifications



Typical Product Spherical titanium powder
Specifications 0-25 0-45 15-53 53-150 15-53 53-150
Particle Sizo
Distrnibution/μm
D10 7-12 12-17 18-23 62-67 20-30 55-65
D50 10-15 27-32 32-37 82-87 35-40 95-110
D90 18-23 45-50 55-60 130-140 50-55 140-155
Sphericity ≥94% ≥93% ≥93% ≥93% ≥95% ≥95%
Flowability/(s/50g)     ≤25 ≤30 ≤35 ≤38
Apparent Densityi(g/c㎡)     ≥2.1 ≥2.1-2.3 ≥2.3-2.5 ≥2.3-2.6
Oxygen Content/(ppm) <1200ppm (600-1600ppm Available)
ChemicalComponent Ti≥99.9,Si≤0.02,Fe≤0.003,Mn≤0.01,Cr≤0.001,Mg≤0.01,Mo≤0.001,Others≤0005
Gas composition C≤0.005,H≤0.015,O≤0.12,N≤0.005


Product specifications

Metallurgy Plasma Spraying Spherical Titanium Powder 50um-150um 1

Product Features

Titanium has outstanding biocompatibility, high specific strength, and excellent mechanical properties, and is widely used in fields such as biomedicine, aerospace 3C electronics, etc. Radio frequency plasma spheroidized titanium powder has the characteristics of high purity, good sphericity, no satellite planet, excellent flowability, high bulk density, and no hollow powder. It is suitable for processes such as 3D printing, hot isostatic pressing, and injection molding.
